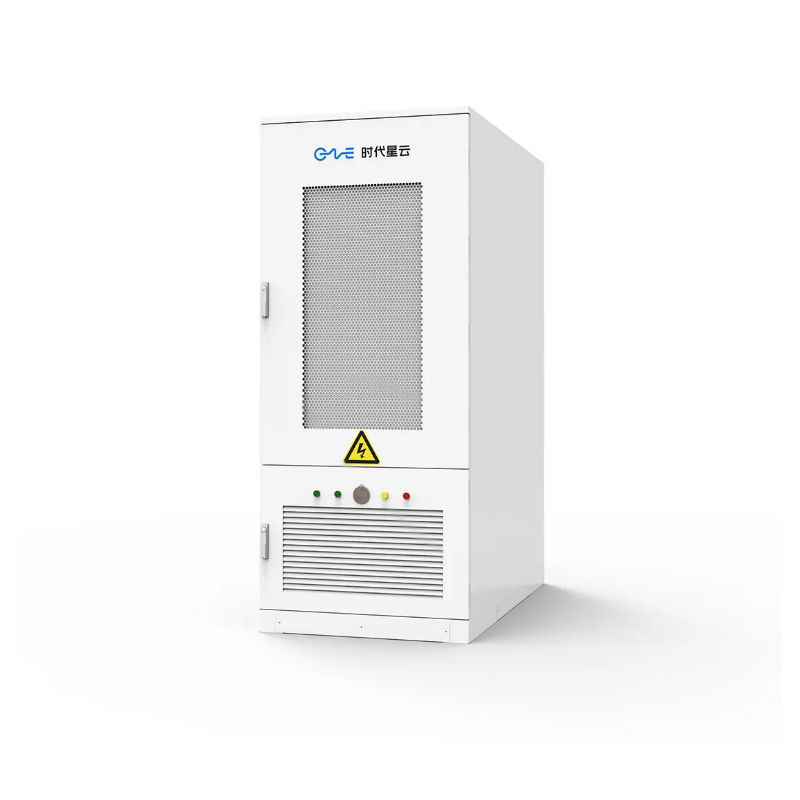

| Model | SCF-0100K-215H-L |
| Type of cell | LFP |
| Cell Model | 280AH |
| Energy storage capacity | 215 kwh |
| Number of cycles (@25 °C, 0.5 P) | ≥8000 |
| Battery | 1P240S |
| Maximum charge/discharge rate | 0.5P/0.5P (sustainable) |
AC parameters
| Rated output power | 100KW |
| Grid voltage | 380/400vac@50Hz |
| Auxiliary power supply (kW) | 3 |
| Power Factor | -1 ~ + 1 |
Generic parameters
| Cooling method | intelligent air cooling |
| Way of Communication | Ethernet |
| Operating Temperature | -20 ~ 55 °C |
| Relative humidity | 0 ~ 95% (no condensation) |
| Working altitude | ≤4000 m (> 2000 m derating) |
| Fire fighting system | precision fire fighting (up to electrical box level) |
| Operating temperature difference (international condition, 0.5 p) | ≤5 °C |
| Protection Level | IP67 |
| Size (width × depth × height) | 980 × 1800 × 2350 mm |
| Weight (T) | ≈2.5T |
