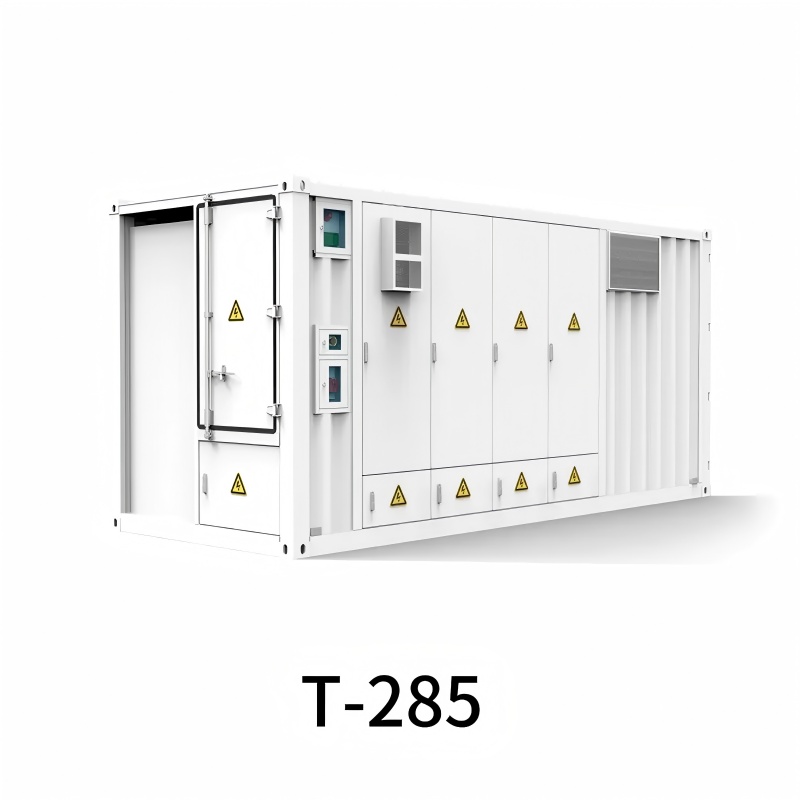

This product is a customized liquid-cooled energy storage container, featuring an advanced liquid cooling thermal management system to ensure optimal battery temperature during operation, enhancing cycle life and safety.
Key Specifications:
Battery Cell Options: Supports high-energy-density 280Ah, 285Ah, or 306Ah lithium iron phosphate (LFP) cells to meet diverse energy storage needs.
High-Efficiency Charge/Discharge: Maximum charge/discharge rate of 1P/1P, enabling fast response for applications like frequency regulation and peak shaving.
Robust Protection: Battery enclosure rated IP67, ensuring dustproof and waterproof performance for reliable operation in harsh environments.
Product Advantages:
✔ Enhanced Safety: Precise temperature control reduces thermal runaway risks.
✔ Extended Lifespan: Optimized cell management prolongs battery service life.
✔ Modular Flexibility: Scalable design allows capacity expansion based on demand.
✔ Wide Applicability: Suitable for various indoor/outdoor scenarios, including renewable energy plants, commercial & industrial storage, and microgrids
STAR T Energy Storage Container Technical Specifications
System Overview
1.1 Voltage Range (@50Hz): 1164.8 ~ 1497.6 Vdc
1.2 Energy Capacity: 2609 ~ 3727 kWh
1.3 Cooling Method: Intelligent Liquid Cooling
Battery Parameters
2.1 Cell Chemistry: LFP (LiFePO4)
2.2 Cell Model: 280 Ah
2.3 Energy Capacity: 2609 ~ 3727 kWh
2.4 Cycle Life (@25°C, 0.5P): ≥ 8000 cycles
2.5 Rated Voltage: 1331.2 Vdc
2.6 Voltage Range (@50Hz): 1164.8 ~ 1497.6 Vdc
2.7 Max. Charge/Discharge Rate: 0.5P/0.5P or 1P/1P
2.8 Battery Cluster Enclosure Protection Rating: IP67
General Parameters
3.1 Cooling Method: Intelligent Liquid Cooling
3.2 Connection Topology: Centralized / String-Type
3.3 Communication Method: Ethernet
3.4 Operating Temperature: -20 to 55 °C
3.5 Relative Humidity: 0 to 95% (Non-Condensing)
3.6 Operating Altitude: ≤ 4000 m (Derating above 2000 m)
3.7 Fire Protection System: Precision Fire Suppression (Up to Battery Cluster Level)
3.8 Operating Temperature Differential (International Standard Conditions, 0.5P): ≤ 4 °C
3.9 Enclosure Protection Rating: IP54
3.10 Dimensions (W x D x H): 6058 × 2438 × 2896 mm
3.11 Weight: ≈ 23 Metric Tons
