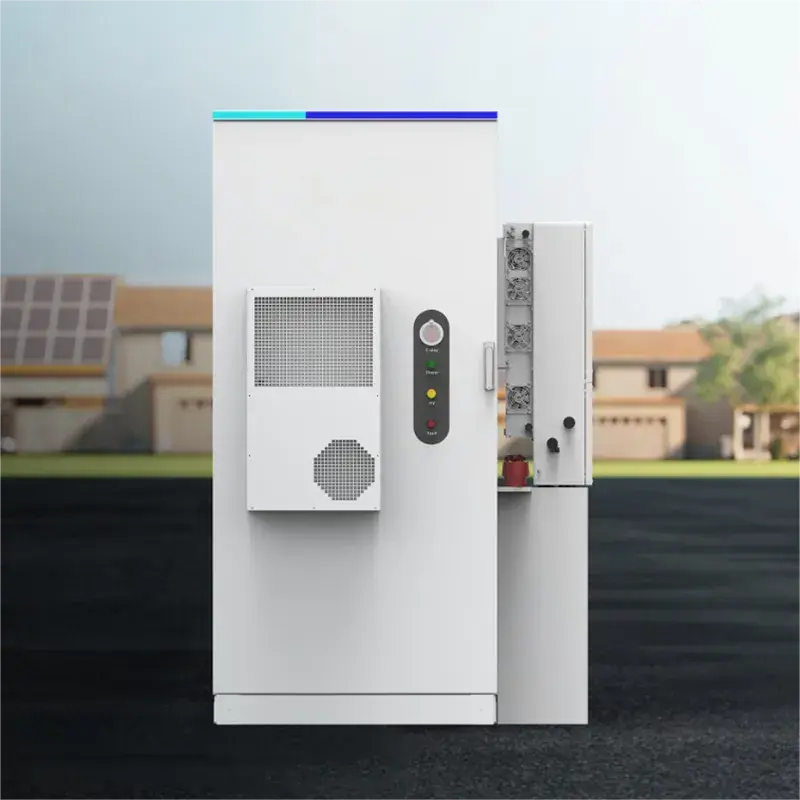

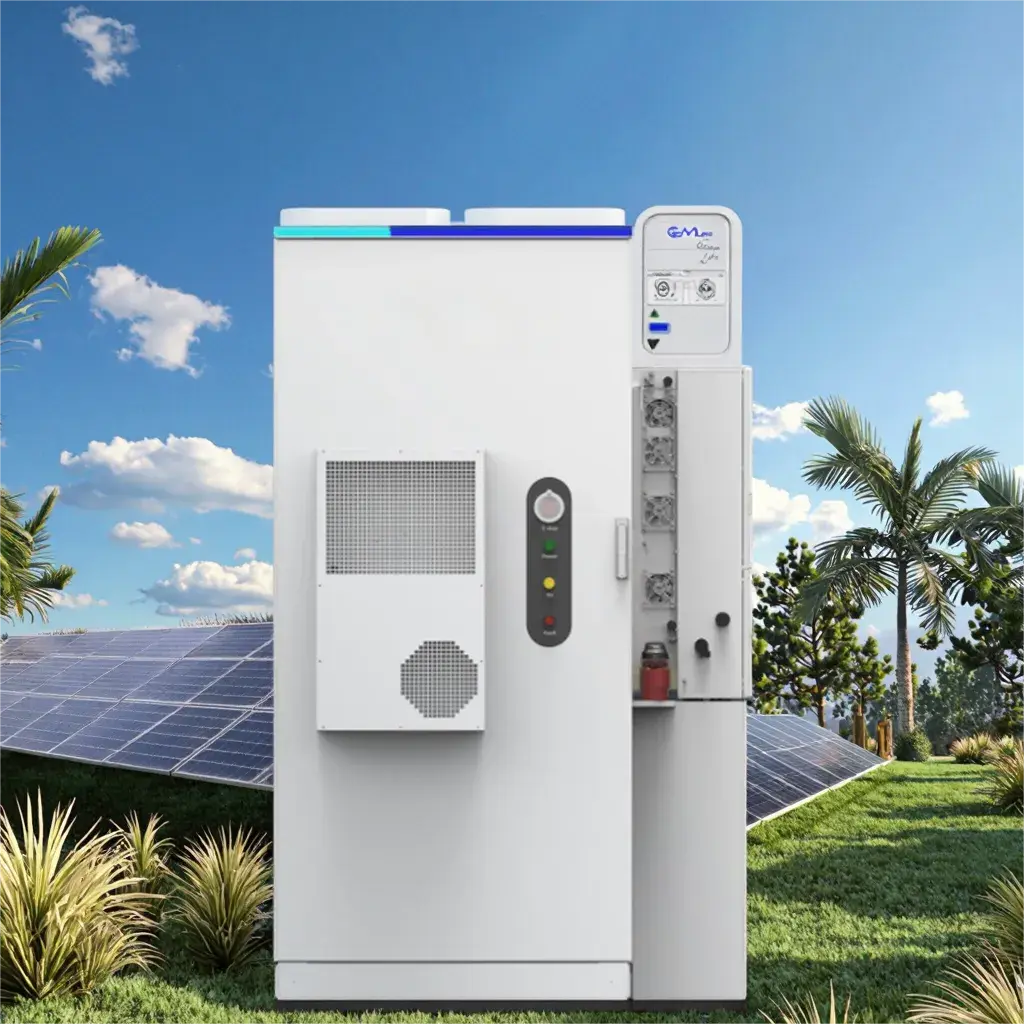

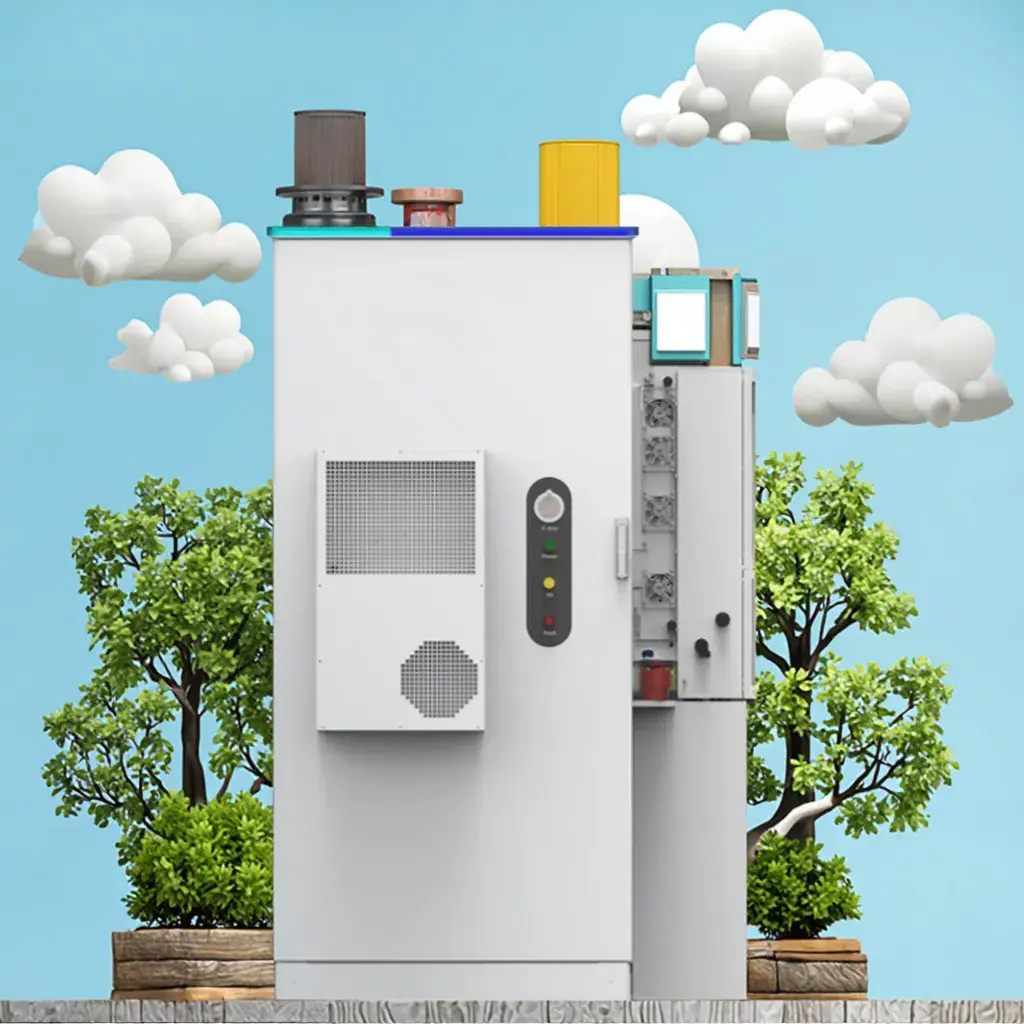

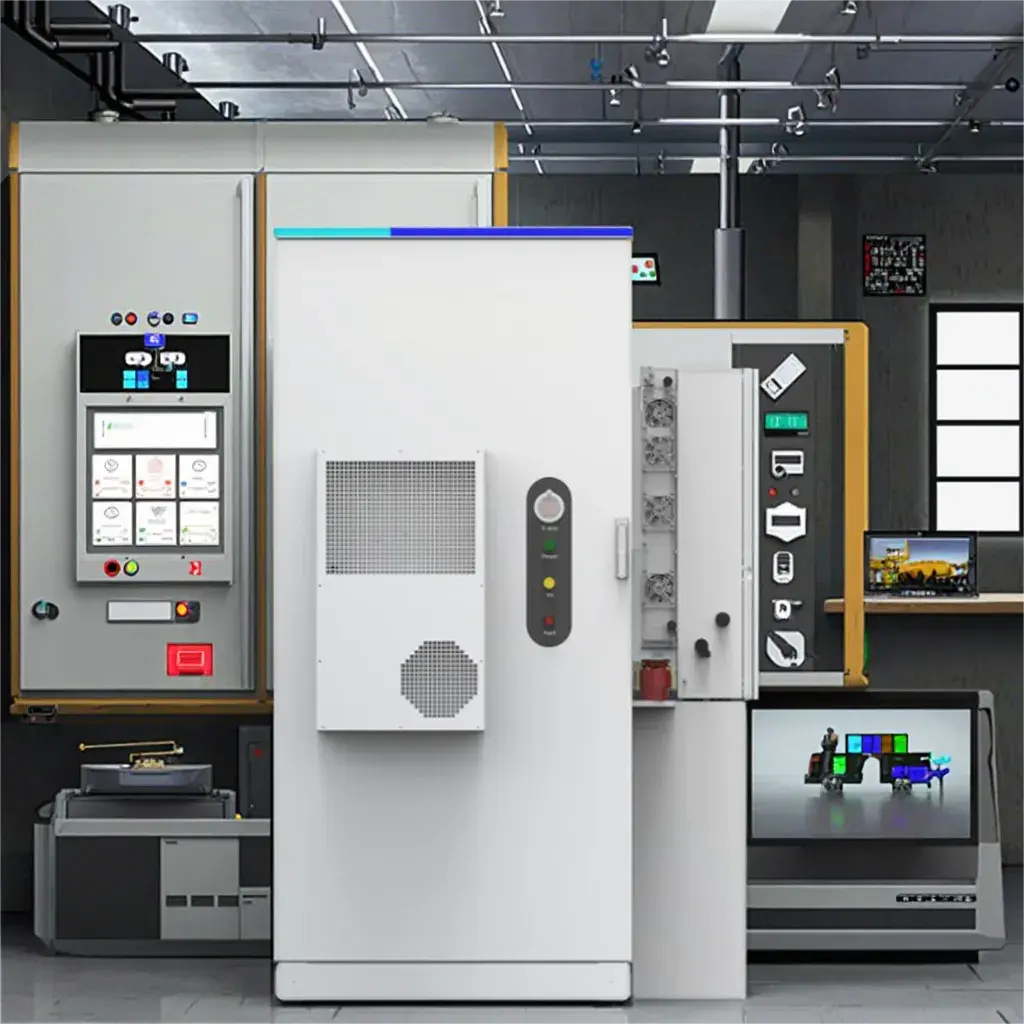

Outdoor Integrated Solar-Storage-Diesel Cabinet | 50kW/109kWh
This system features an all-in-one smart design, integrating solar PV, battery storage, and diesel generator hybrid power supply, suitable for off-grid, grid-tied, and hybrid applications. Equipped with a high-efficiency hybrid inverter, it supports multi-source input (diesel generator, PV, and grid power), intelligently optimizing energy dispatch to maximize renewable energy utilization and reduce diesel dependency.
Key Advantages:
✔ Seamless Switching – In case of grid failure, automatic backup power (PV/storage/diesel)切换 within 0.02 seconds, ensuring critical load continuity for high-reliability scenarios.
✔ Hybrid Energy – Solar-first power supply, battery storage for peak shaving, and diesel backup guarantee 24/7 uninterrupted operation.
✔ Smart Management – Built-in Energy Management System (EMS) enables remote monitoring, load optimization, and fault alerts for enhanced O&M efficiency.
✔ High Scalability – Modular design allows flexible expansion of storage capacity and PV power to meet diverse energy demands.
Typical Applications:
Telecom base stations & remote area electrification
Emergency power & medical facility backup
Commercial/industrial microgrids & off-grid residential supply
STAR Q Energy Storage Cabinet Technical Specifications
1. Battery System
1.1 Cell Chemistry: LFP (LiFePO4)
1.2 Energy Capacity: 109 kWh
1.3 Cycle Life (@25°C, 0.5P): ≥ 10,000 cycles
1.4 Max. Charge/Discharge Rate: ≤ 0.5P
2. AC Output (Grid-Tied/Off-Grid)
2.1 Rated Output Power: 50 kW
2.2 Rated Output Voltage (3L/N/PE): 380 / 400 Vac
2.3 Rated Frequency: 50 / 60 Hz
2.4 Total Current Harmonic Distortion (THDi): < 3%
2.5 Total Voltage Harmonic Distortion (THDv): < 3%
3. PV Input
3.1 MPPT Voltage Range: 150 - 850 Vdc
3.2 Max. PV Input Power: 96 kW
3.3 MPPT Trackers / Strings per Tracker: 4 / 2
3.4 Max. Input Current (per tracker): 40 A / 40 A / 40 A / 40 A
4. General Parameters
4.1 Grid-Tied to Off-Grid Switching Time: < 20 ms
4.2 Cooling Method: Intelligent Forced Air Cooling
4.3 Operating Temperature: -25 to 55 °C (Derating above 45°C)
4.4 Relative Humidity: 0 to 95% (Non-Condensing)
4.5 Operating Altitude: ≤ 4000 m (Derating above 2000 m)
4.6 Ingress Protection (IP) Rating: IP55
4.7 Dimensions (W x D x H): 1270 × 1340 × 2094 mm
4.8 Weight: ≈ 1.4 Metric Tons
5.Certifications & Standards
5.1 EN 50549-1, EN 50549-10
5.2 VDE-AR-N 4105
5.3 NRS 097-2-1
5.4 IEC 61000, IEC 62477, IEC 62619, IEC 62109
5.5 UN 38.3
